This is the complete solution for adding a Bluetooth compatible flex fuel analyzer to your vehicle with an ethanol sensor and a variety of optional -6an (3/8″) or -5an (5/16″) Fuel-It! fittings.
All of our Bluetooth Ethanol Analyzers include the optional 0-5V analog output or 50-150hz raw signal output in the same unit!
- Includes 0-5 volt linear output
- 0 volts = 0% ethanol
- 1 volt = 20% ethanol
- 2 volts = 40% ethanol
- etc.
- Includes 50-150 raw signal linear output directly from the ethanol sensor
- 50hz = 0% ethanol
- 60hz = 10% ethanol
- 70hz = 20% ethanol
- etc.

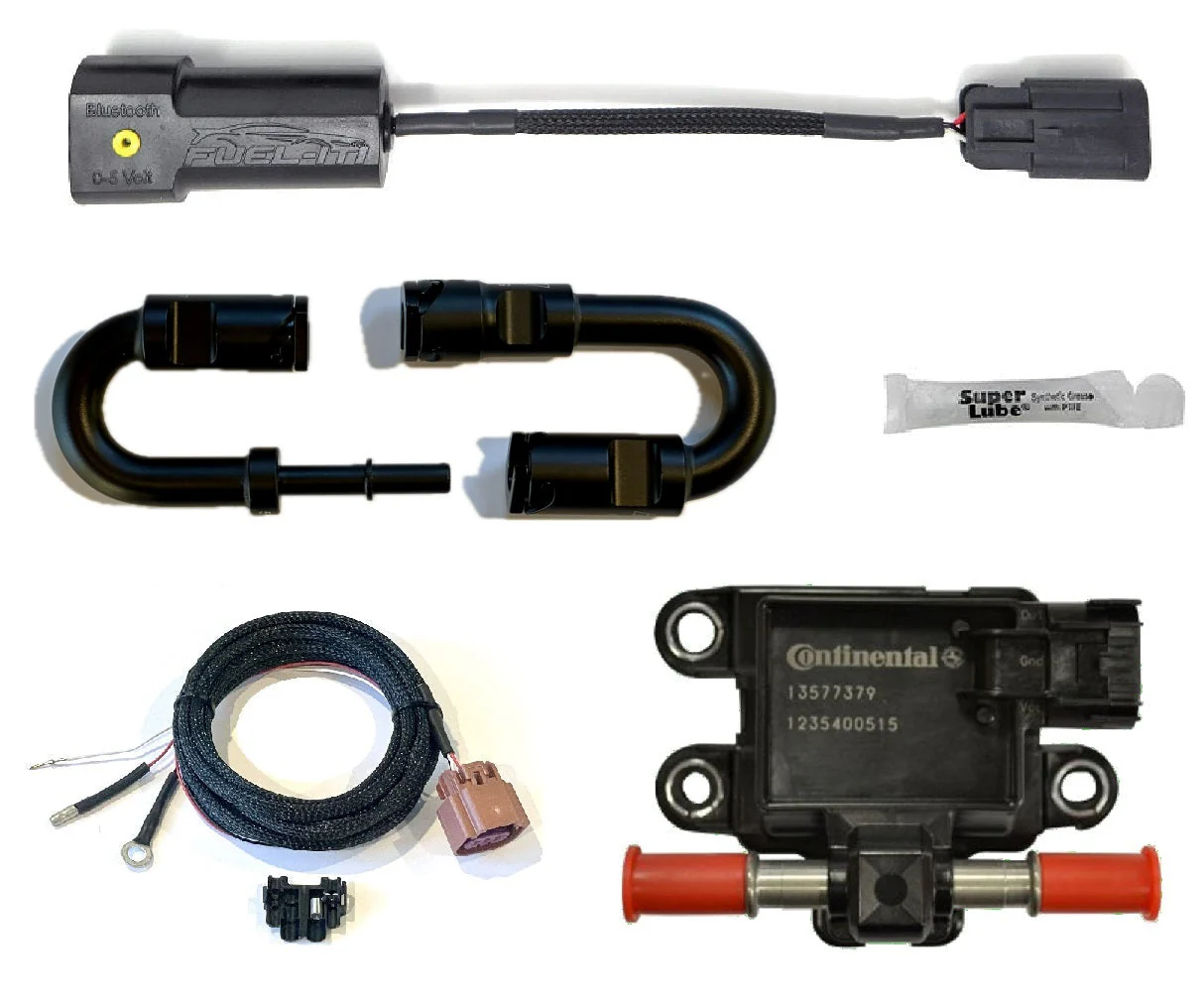

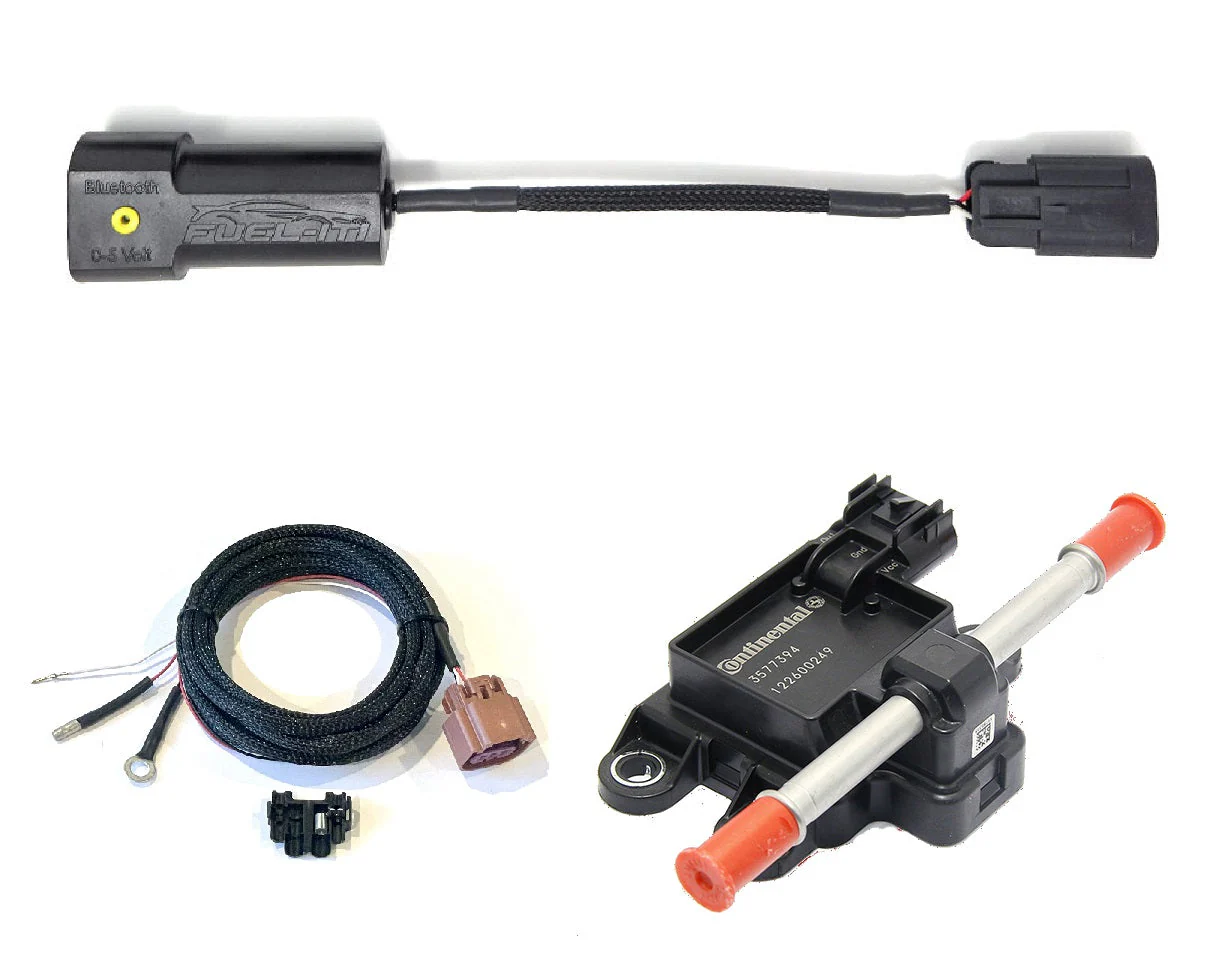

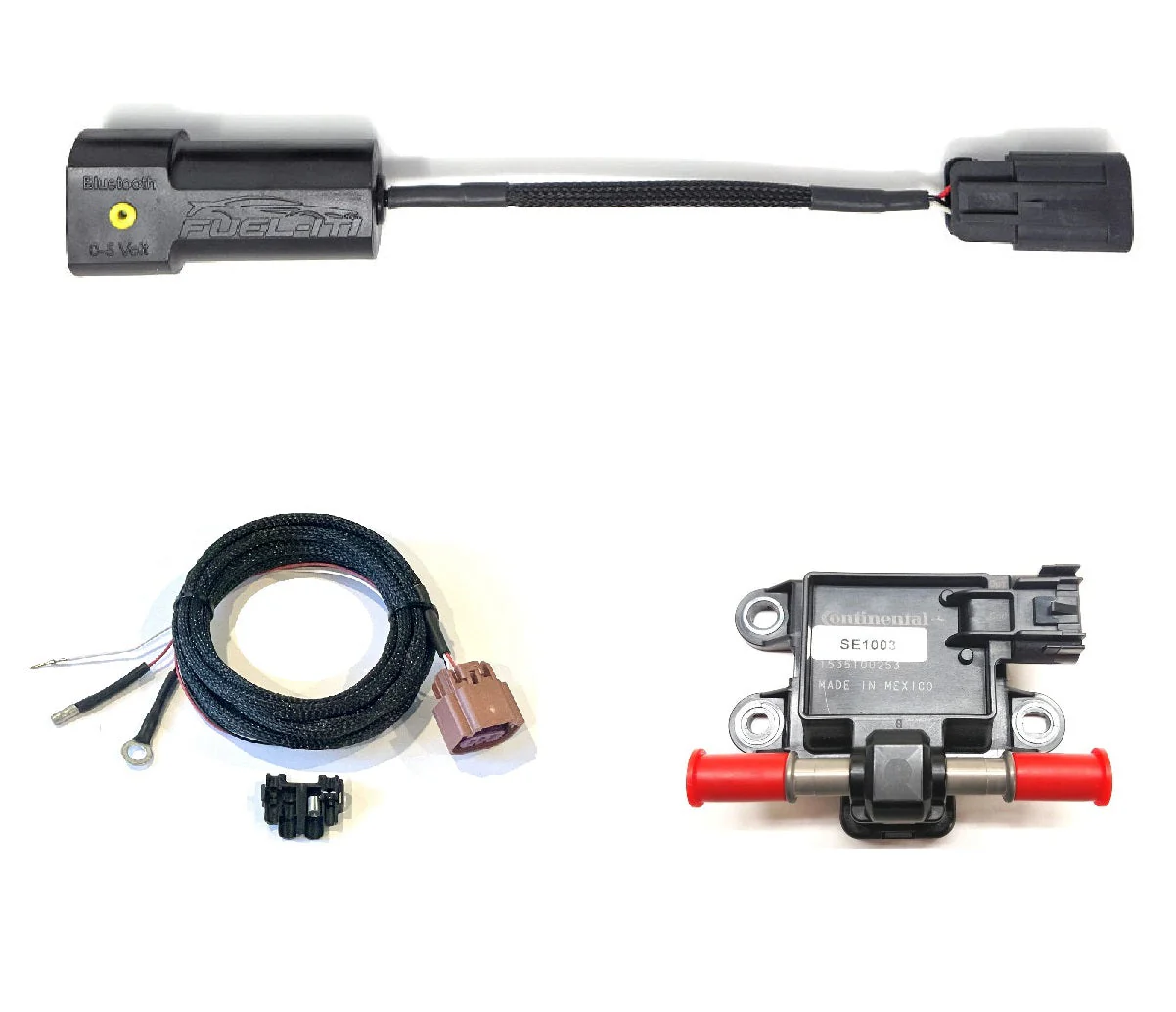

- All analyzer options include:

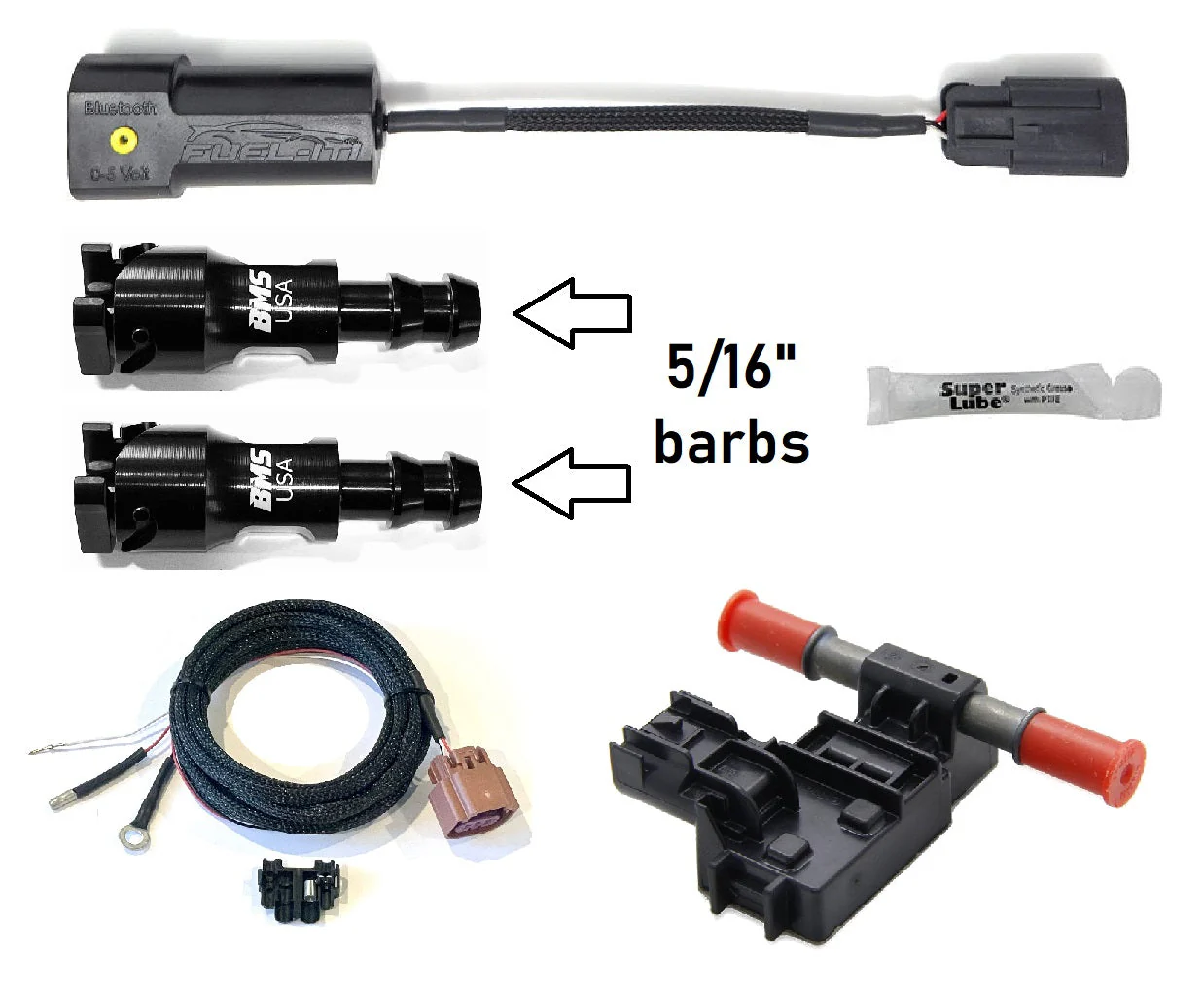

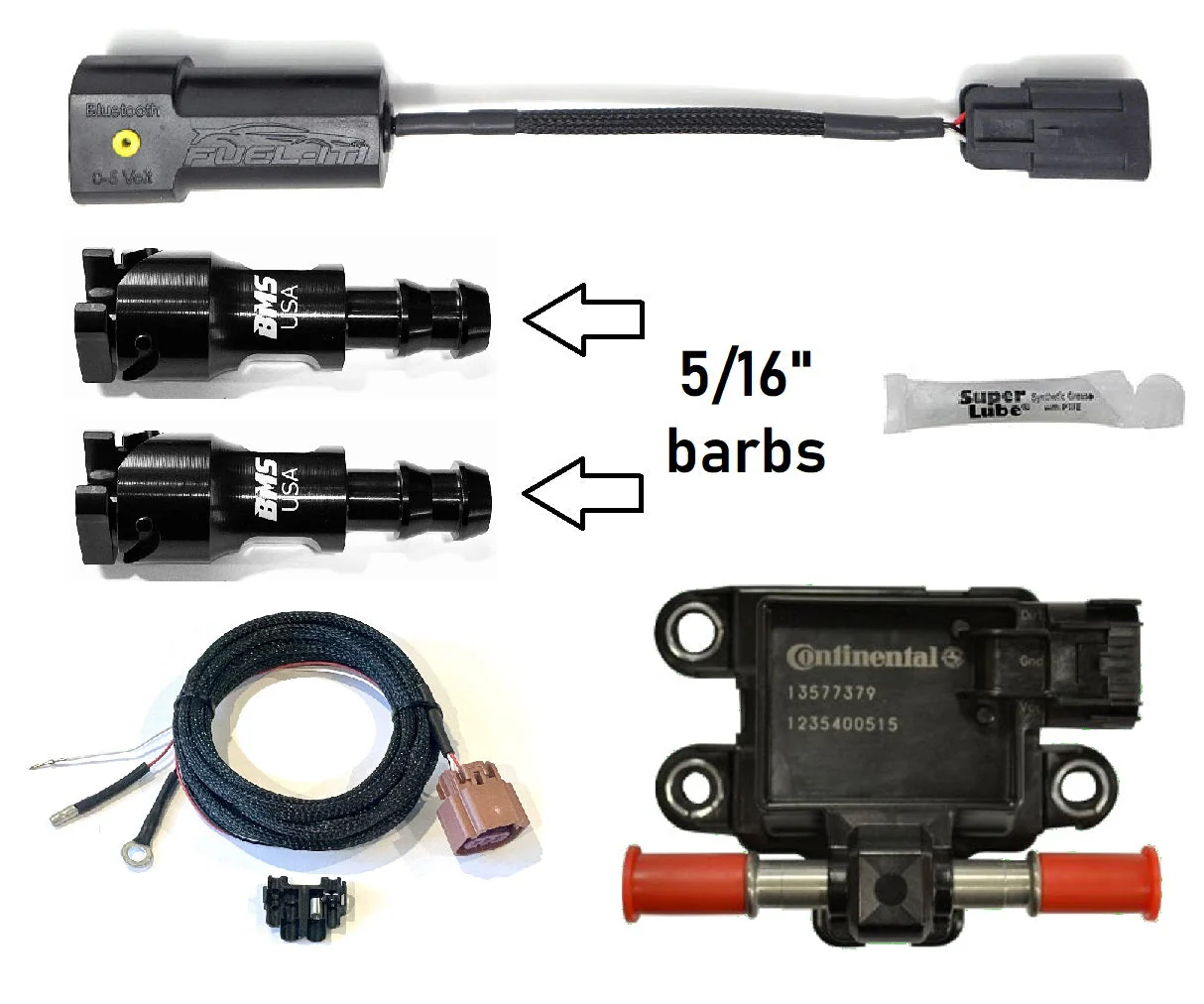

- Fuel-It! Universal Bluetooth analyzer that plugs directly into the supplied ethanol sensor
- Genuine Continental ethanol sensor
- Bluetooth output, 0-5 volt analog output, and 50-150hz raw signal output

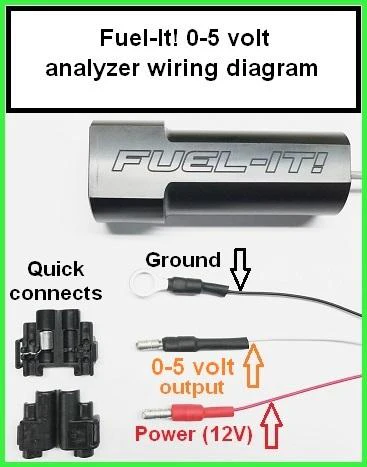

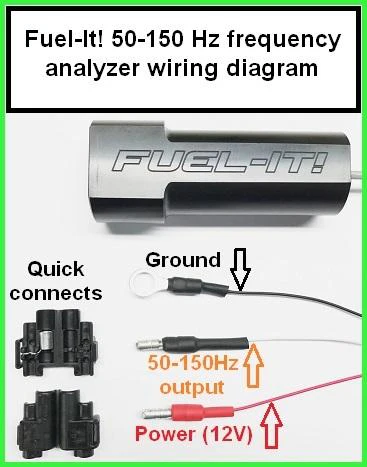

- Electrical connections for power and ground

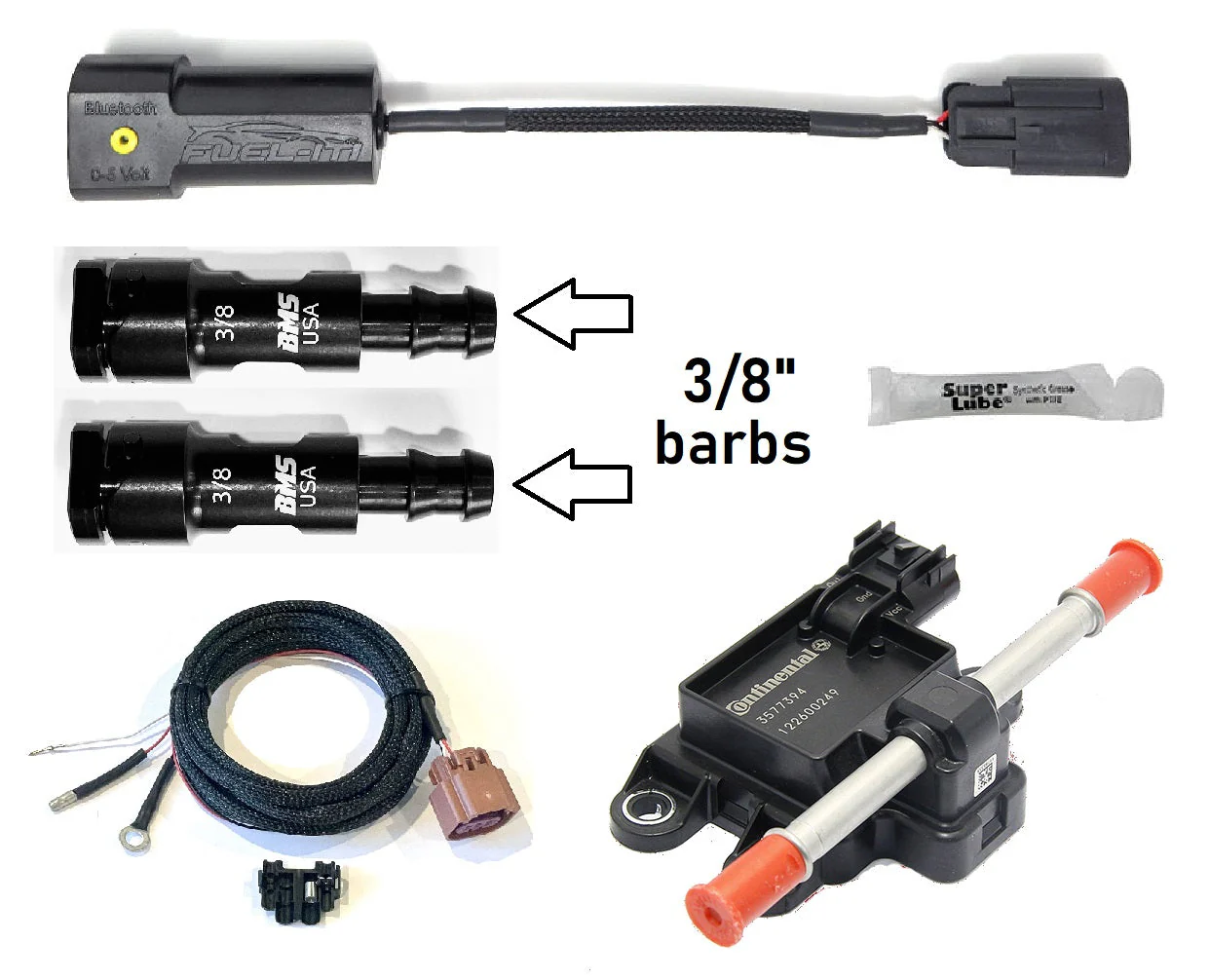

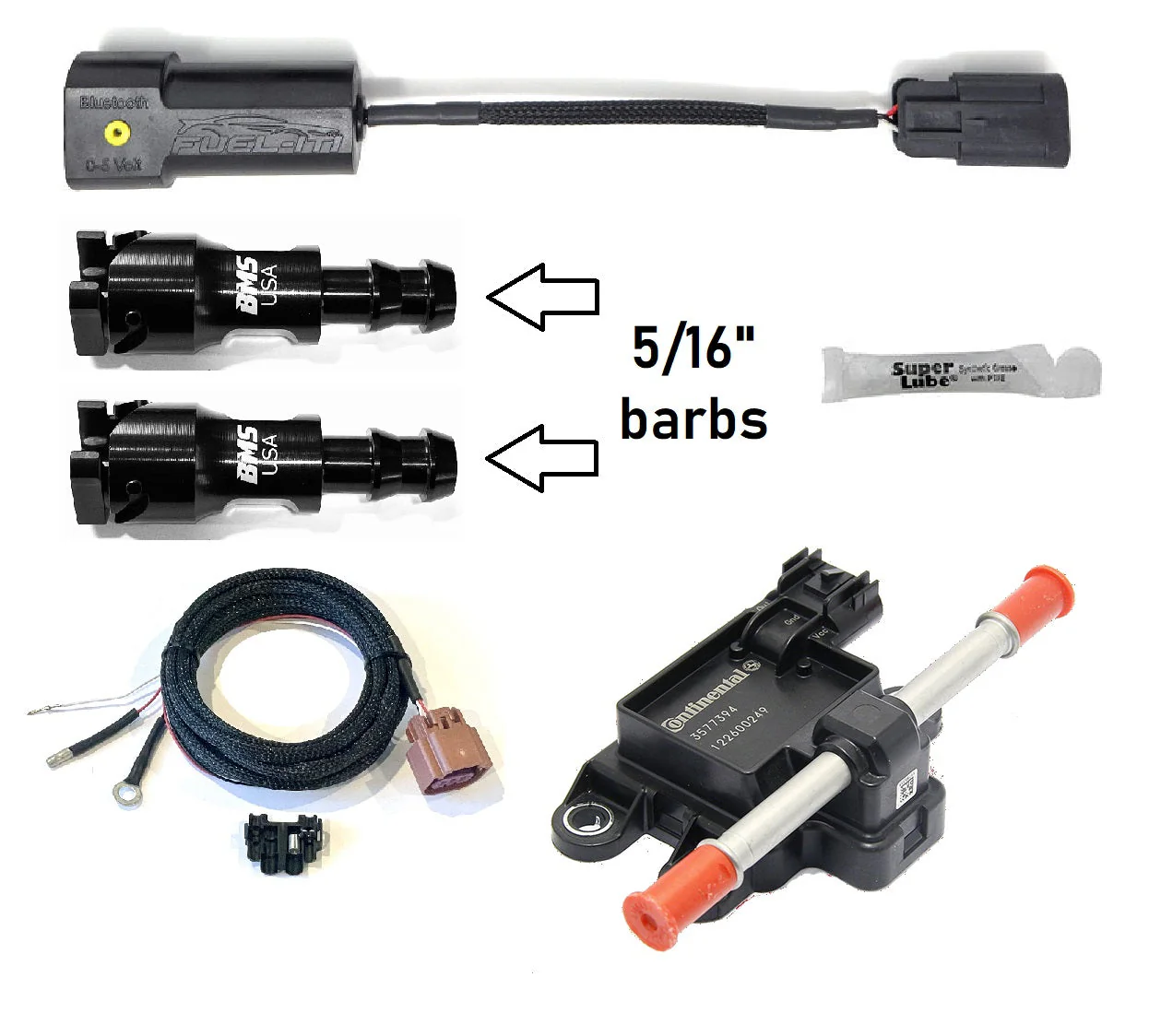

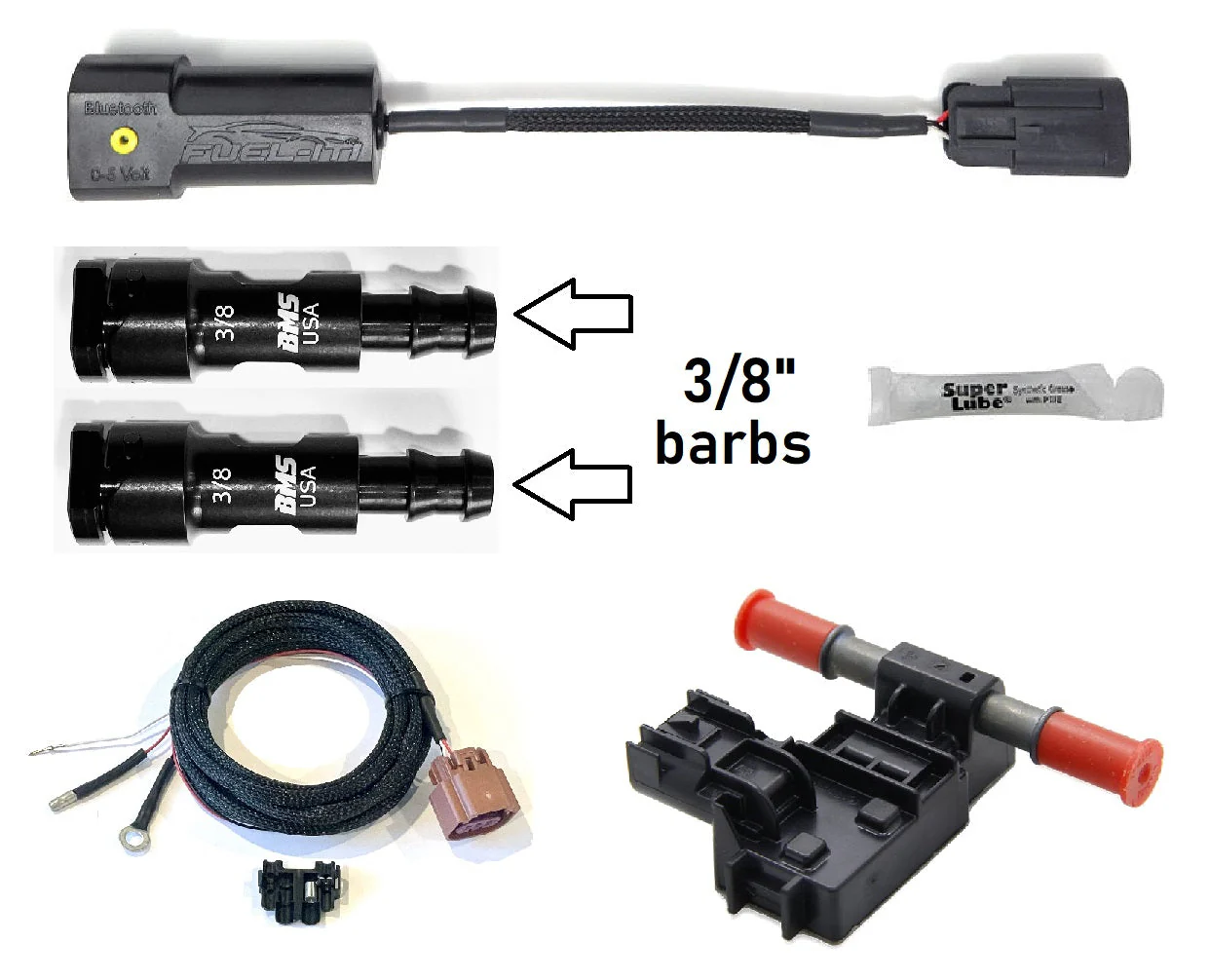

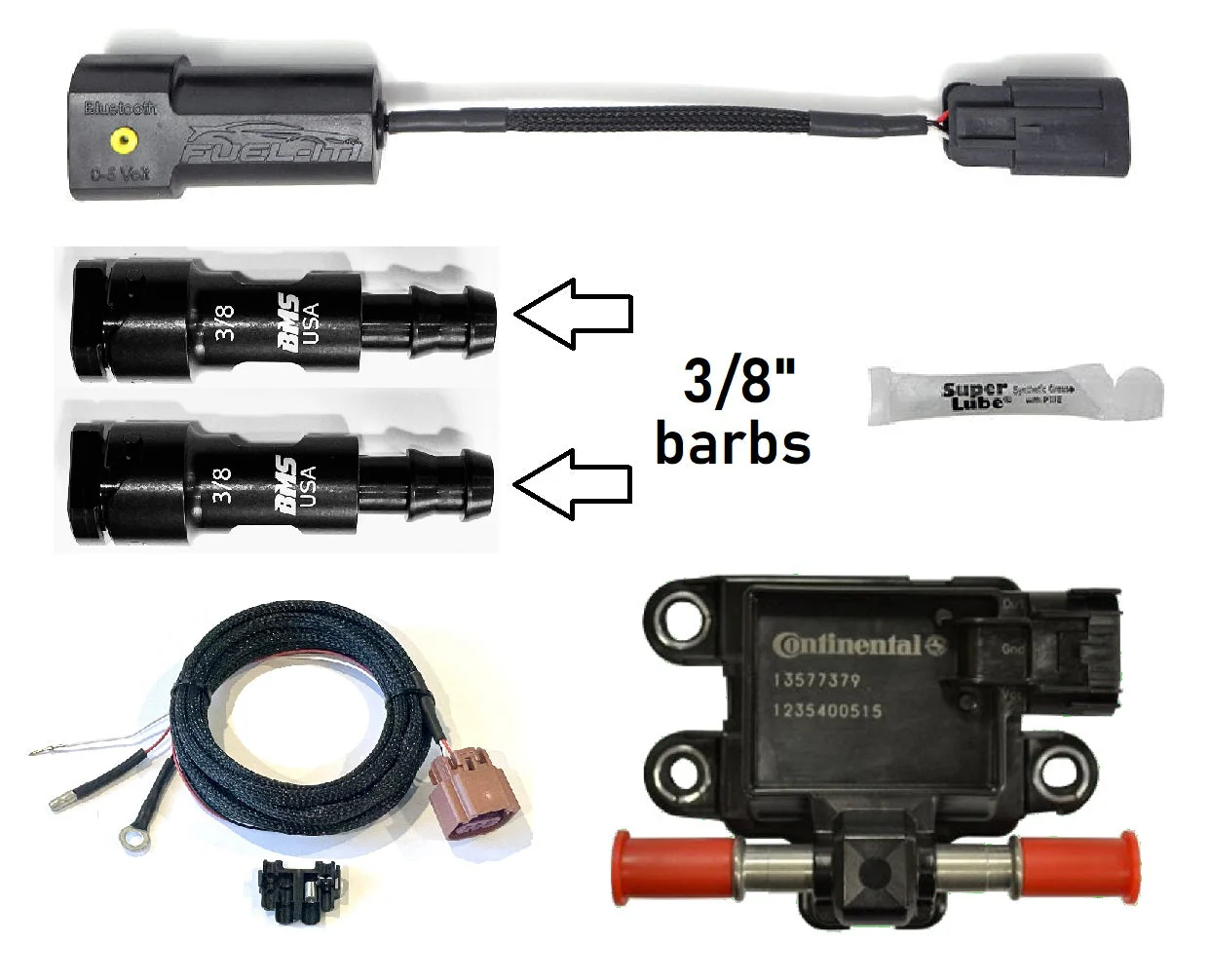

- Optional barbed fittings feature:
- Anodized billet aluminum construction
- Push-lock style barbed connections for use with many socketless fuel hoses available on the market. (Please consult hose manufacturer to verify compatibility)
- Fuel-It! exclusive cam lock fittings (see video below)

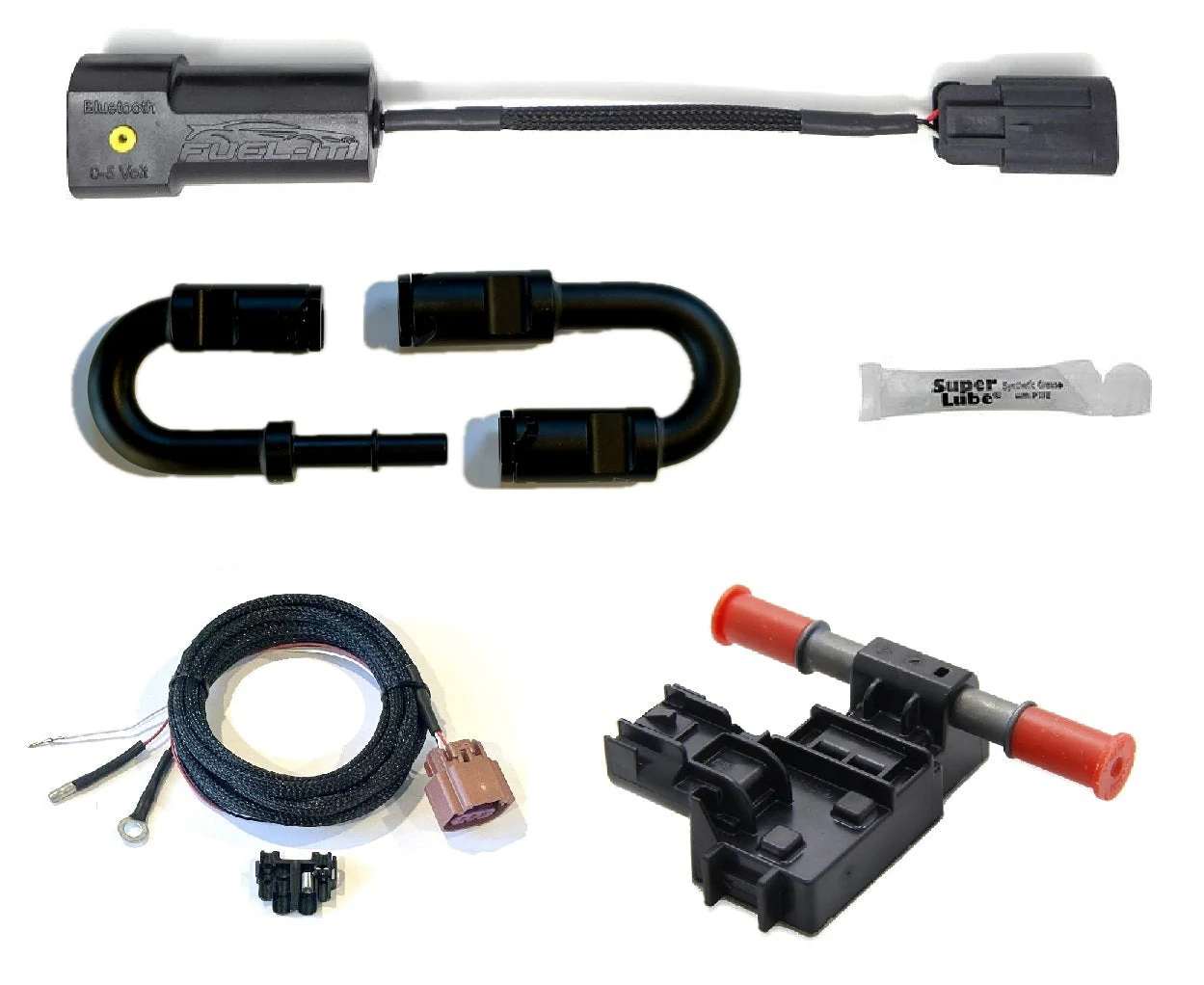

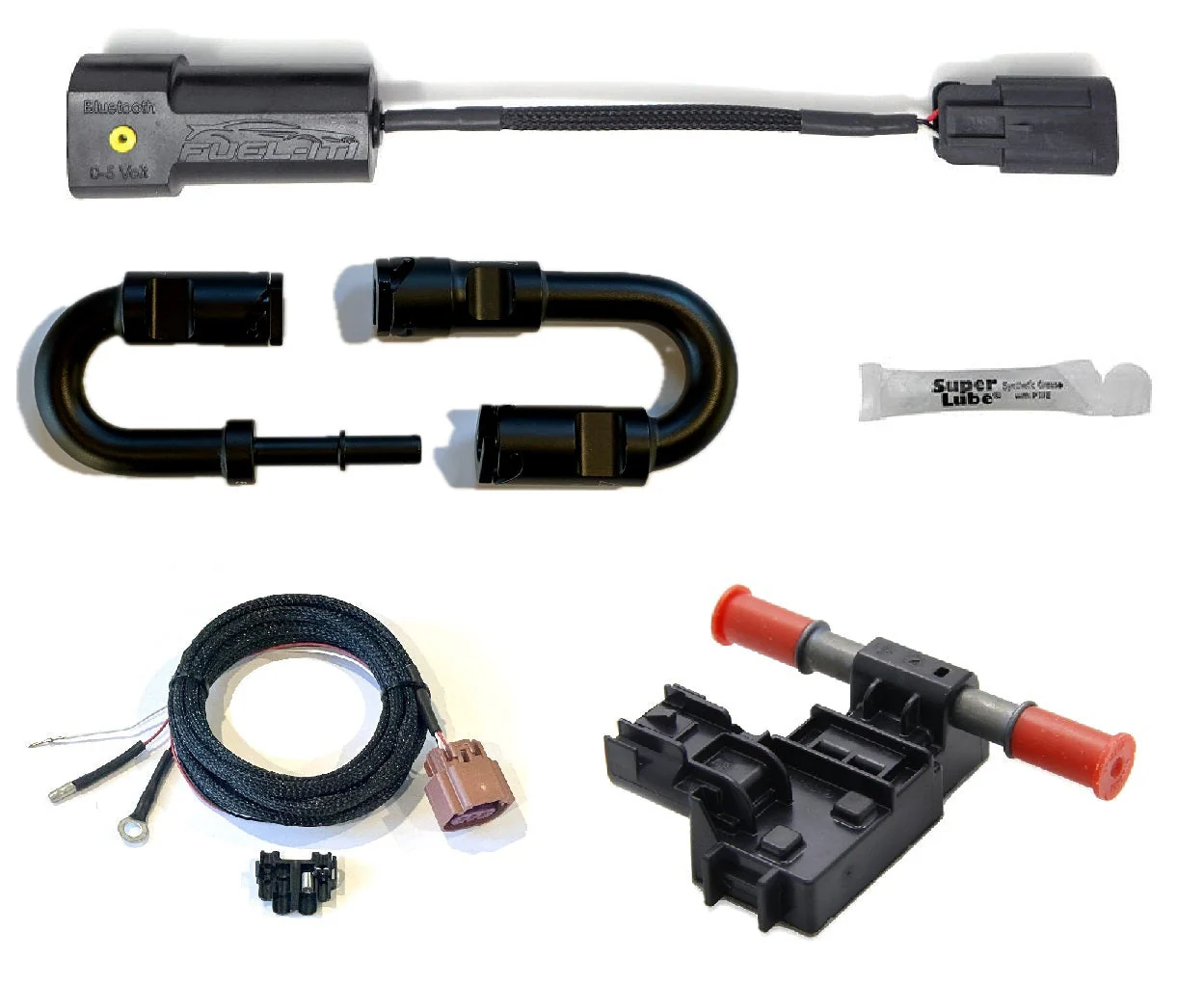

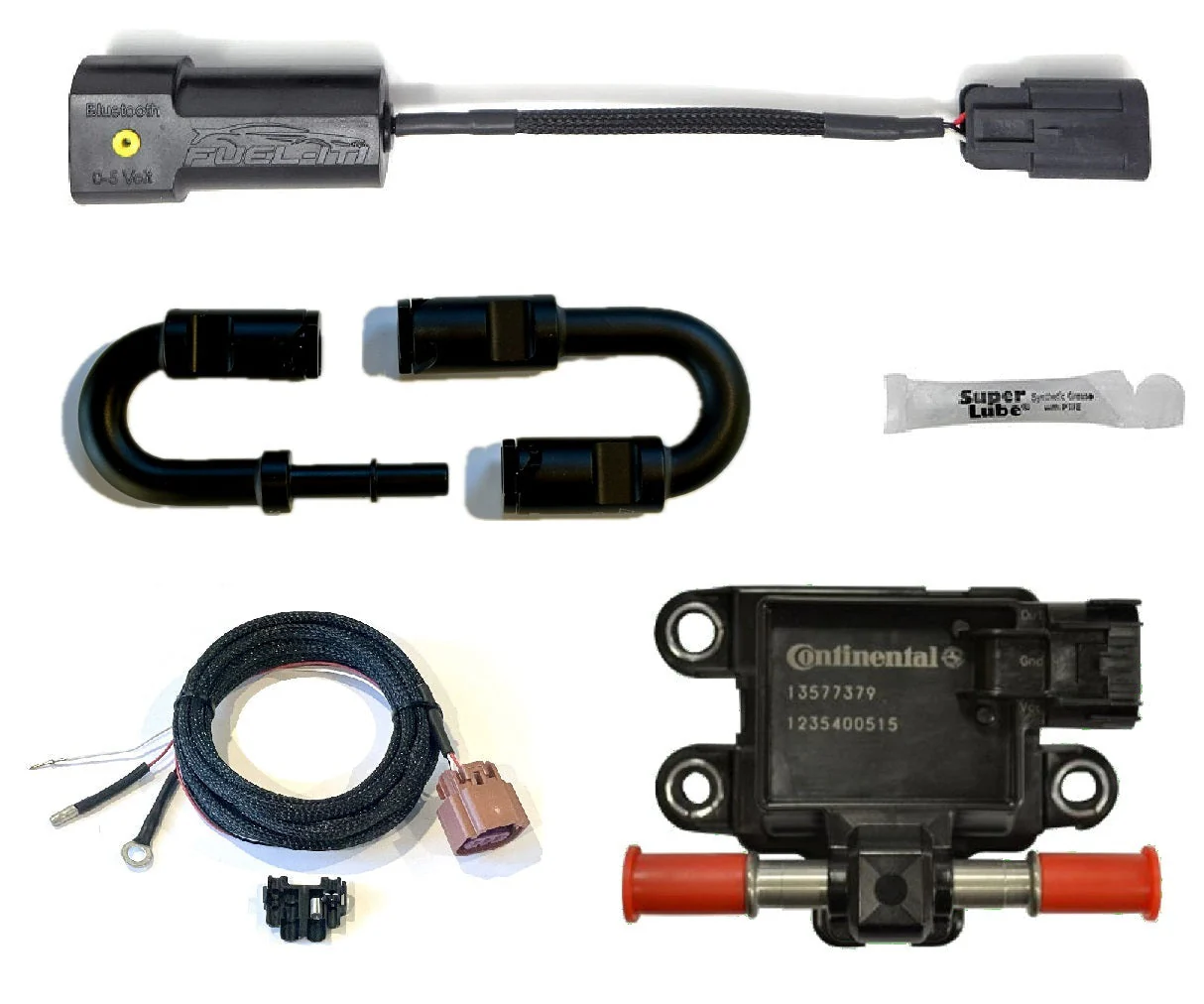

- Optional quick connect fittings feature:
- Anodized billet aluminum construction
- Quick connect connections for use with many stock fuel lines and fittings found on modern cars. As a general rule but not always most domestic manufacturers use 3/8″ fittings and most European manufacturers use 5/16″ fittings. Please verify before ordering.
- Fuel-It! exclusive cam lock fittings (see video below)
- To use our Bluetooth feature an additional 3rd party app for your Android or Apple phone must be downloaded and can be found here:
- If you are using an Apple® product the app can be found by clicking here
- If you are using an Android® product the app can be found by clicking here
* Fuel lines sold separately.
